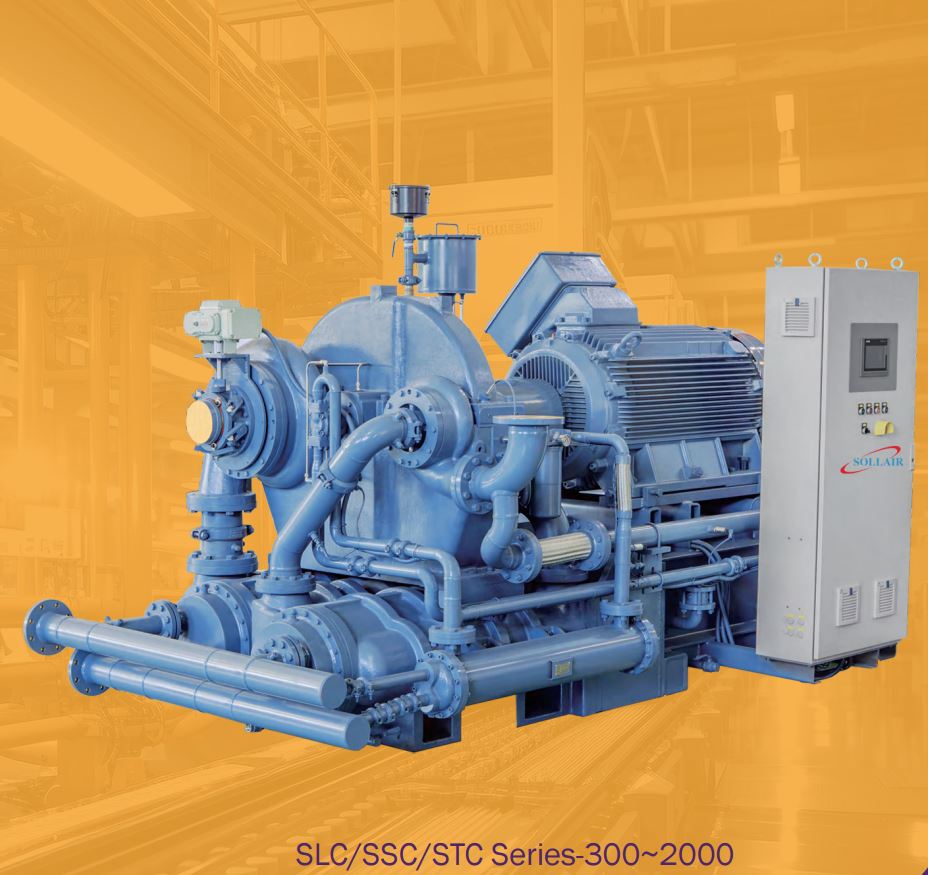

Centrifugal Air Compressors

Rated Pressure: 0.6-30 bar, 8.7-435 psi
Air Flow @ Outlet: 24-3000 m³/min, 848-105944 cfm
Power: 132-15130 kW, 177-20274 hp

● High reliability, high safety
● Integrated package and economical installation
● Siemens PLC + touch screen, friendly interface and easy operation
● Easy maintenance and economical cost
● 1-4 stage option
● No instrument gas required
● No special base and anchor bolt required
● Oil-free，Silicon-free
● No sealing gas required
● Low noise and low vibration
● Anti surge protection

● High efficiency scroll: the gas will enter the scroll directly for revolute type, but one vertical retrace will occur for involute type. The efficiency is increased by 2%

Model Pressure(bar) Flow range(m³/min) Motor Power(kW) Dimensions(L)(mm) Dimensions(M)(mm) Dimensions(H)(mm) Weight(kg)
SLLC-300C 0.6-9 24-48 132-263 2750 1500 1820 3800
SLLC-600C 0.6-12 45-82 248-450 3280 1850 2200 6300
SLLC-900C 0.6-12 76-122 400-640 3800 2000 2250 8160
SLLC-1200C 0.6-12 118-150 630-800 4200 2150 2350 11500
SLLC-1500C 0.6-16 118-228 760-1300 4200 2150 2350 12000
SLLC-2000C 0.6-16 186-310 980-1600 4600 2200 2500 17200
SLLC-3000C 0.6-16 268-438 1380-2250 5300 2300 2970 21500
SLLC-4000C 0.6-25 347-550 1800-2850 6000 4500 3500 40000
SLLC-6500C 0.6-25 530-920 2660-4540 8500 4200 4200 45000
SLLC-10000C 0.6-30 830-1660 4060-7950 12000 5000 5300 65000
SLLC-20000C 0.6-30 1780-3000 8990-15130 15000 6200 6000 80000

Note:
Standard voltage is 380V/50HZ/3P, other voltage is available.

The recommended best capacity range is 60%-100%.
In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.

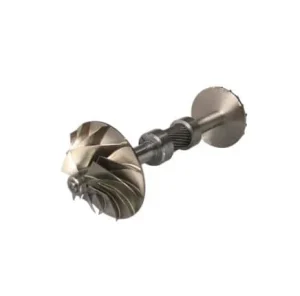

Rotor

The high-speed rotor is dynamically balanced, and designed to resist vibration without thrust bearings. There is no relative sliding in the rotor transmission, and the gear drive system is highly reliable, with a design life of 35 years.

Rotor

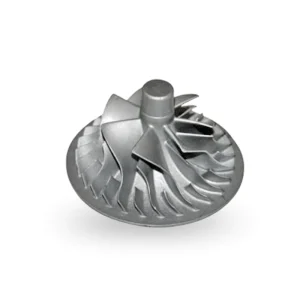

Impeller

● Aviation class high efficiency and high reliability titanium alloy impeller
● Anti-corrosion special coating impeller used for high corrosion industry
● Five-axis precision machining forging 3D flow back leaning design impeller, higher aerodynamic efficiency
● Splitter blade design for large flow
● Low flow loss and better adaptability for off-design conditions

Impeller

Bearings

● Tilting pad journal bearing realize high-speed and stable operation. Pad tilt will self-adjust when the bearing load changes.
● CC pad of high heat conductivity and high strength can decrease the bearing temperature and promote the stability of the rotor system.

Bearings

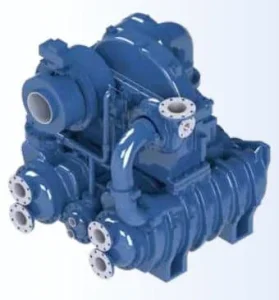

Highly Reliable Cooler

●  Straight tube design, no need to be pull out when maintaining, 90% maintenance time saved;

● No consumption parts and low maintenance fee;

● Larger design, high heat exchange efficiency, low water consumption and low pressure loss, about 1-2% energy saving;

● Gradual changing Cross design, perfect gas-liquid separation effect; ●  Stainless steel backing board design, eliminating corrosion risk;

● No fastening parts, no risk of dameging the impellor by fallen parts; ●  Supported by both side, eliminating the damage risk from resonance; ●  Long life span drainer, no rusty, draining strongly and zero gas consumption.

Highly Reliable Cooler

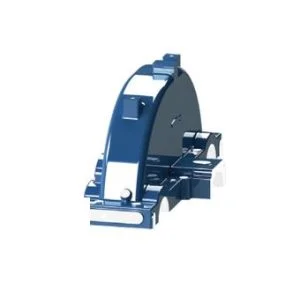

Gear Box

Horizontal split type for easy maintenance of the bearings and shaft seals.

Thrust collar instead of thrust bearings. Which makes the structure simpler and increase the transmission efficiency and reliability.

Gear Box

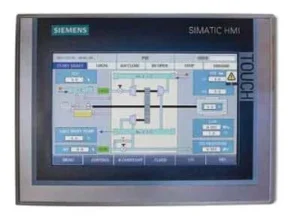

Local Control System

● The advanced Siemens PLC system +7” touch screen, friendly interface and easy opeartion;

● Options for auto dual, constant pressure control and self-balance control mode;

● All operating parameters can be displayed and setted；

● Features for various alarm and trip condition；

● Features anti-surge and surge prediction functions；

● Communication to DCS by DH+, Modbus, Profibus OR Ethernet.



Local Control System

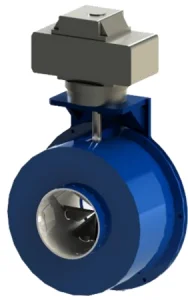

Inlet Guide Vane

The efficiency of compressor with IGV is 7-9% higher than that with butterfly valve, for IGV provides preswirl flow to the air taken into in the same direction as the impeller. Furthermore IGV can provide wider turn down rage and which is more smoothly during the adjusting period.

● Smoothly and high efficiency when adjusting;

● More safety and dust proof with cover;
● High reliability by fork type.

Inlet Guide Vane

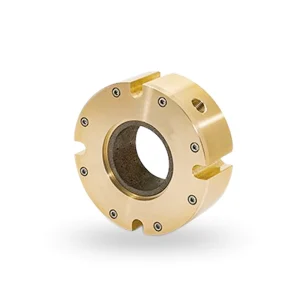

Air Seal

The gas & oil seal is labyrinth type, which has no contact to the shaft., no abrasion, long life, and low maintenance, no consumption of instrument air, and also, horizontal split makes easier maintenance.



Air Seal

Looking for the Best Compressed Air Solution for your industry?

Get free consultation Now
  • Share your requirements for expert evaluation (multilingual support).
  • Get customized solution, including IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
  • Production started after order confirmation (standard production time: 20-25 days).
  • Rigorous quality testing before shipping.
  • Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.

Related products

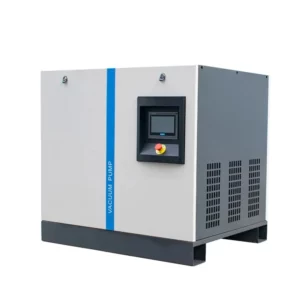

Vacuum Pumps
