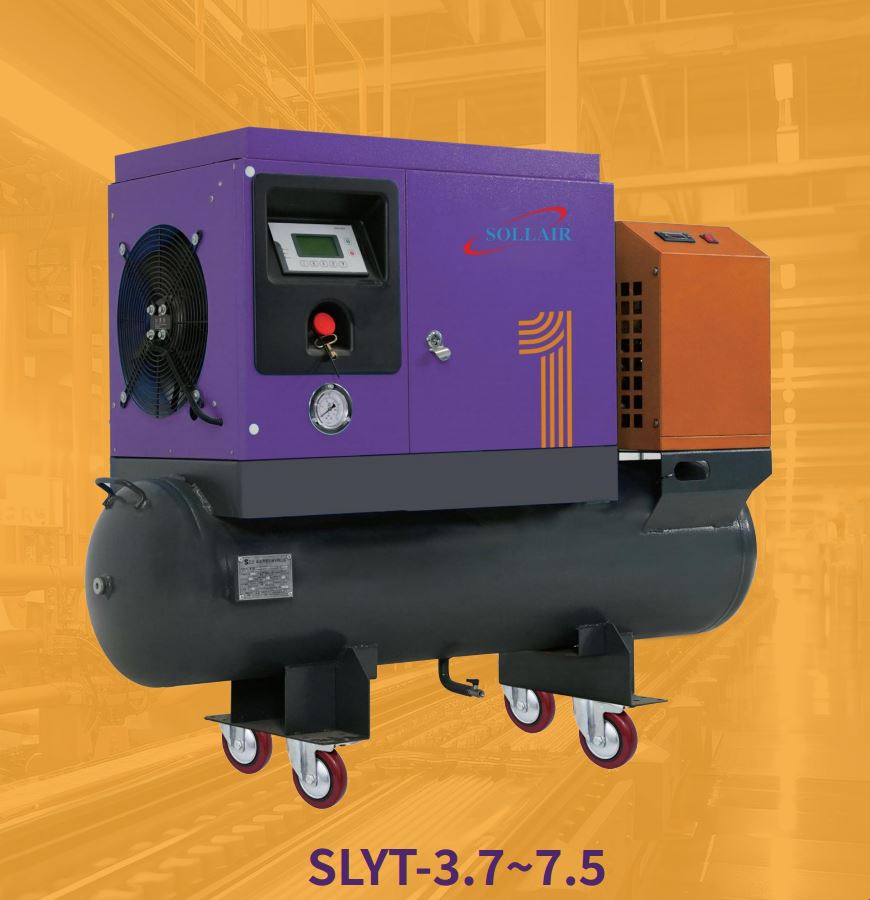

Mini-Series 3 in 1 (Compressor + Tank + Dryer)

Rated Pressure: 0.8 -1.3 MPa, 8 – 13 Bar
Air Flow @ Outlet: 300 – 980 L/min
Power: 3.7 – 10 kW, 5 – 10 hp

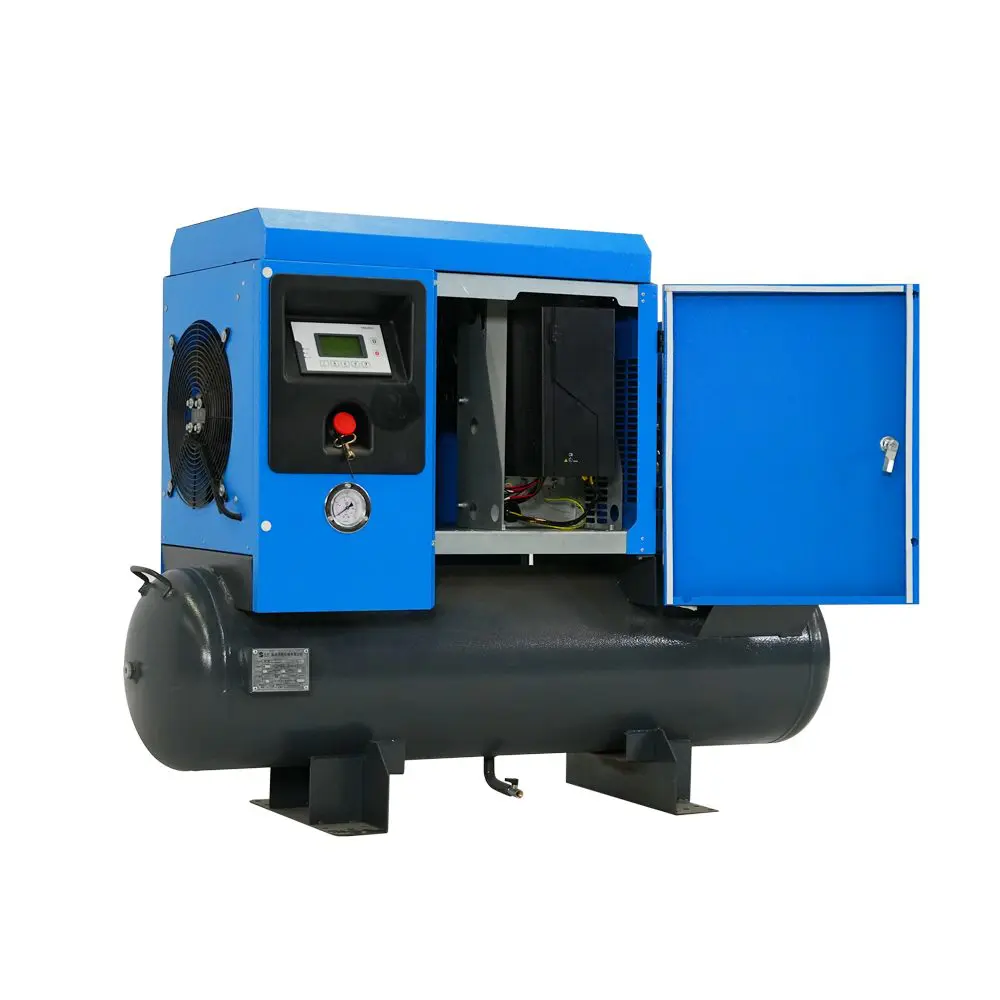

3 In 1 Portable Electric Air Compressor

Energy Saving: save up to 50% on electricity costs. It operates on a standard voltage of 220V, which is conveniential  for many users.

High efficiency : The mini series air compressor with built-in dryer improves efficiency by ensuring that the compressed air is free from moisture. Besides, the air compressor applies two-phase induction motor with fast rotating speed to enhance overall efficiency.

Reduce maintainence cost and prolong life span: Moisture in the compressed air system can cause corrosion and damage to equipment, resulting in costly repairs and downtime. By investing in Sollair air compressor with built-in dryer, moisture can be removed from the compressed air, preventing these issues and reducing maintenance costs. Additionally, dry air can improve the lifespan of tools and equipment, reducing the need for frequent replacements and repairs.

● Perfect solution for any industry that values efficiency, reliability, and cost-effectiveness:  In manufacturing, dry air is essential for preventing contamination and ensuring product quality. In the automotive industry, dry air is necessary for painting and finishing processes. In construction, dry air can prevent damage to pneumatic tools and equipment. And in the medical industry, dry air is crucial for maintaining sterile environments.

Model
No. /
Drive Types
Power
(kW/HP)
Rated
pressure
(bar)
Air Flow
@ Outlet
(L/min)
Dimensions
(mm)
Weight
(kg)
Air Outlet Pipe
Diameter
Air Tank
Volume
(L)
SLYT-3.7A 3.7
/ 5
8 400 1420*540*1035 155 G1/2 130
10 350
13 300
SLYT-4.5A 4.5
/ 6
8 500 1420*540*1035 155 G1/2 130
10 420
13 360
SLYT-5.5A 5.5
/ 7
8 630 1420*540*1035 155 G1/2 130
10 550
13 420
SLYT-7.5A 7.5
/ 10
8 980 1480*560*1270 155 G1/2 220
10 900
13 800

Note:
Standard voltage is 380V/50HZ/3P, other voltage is available.Due to the potentially different rotation speeds of motors, the air flow rates of fixed speed represent the minimum in the range (i.e 30kW 8 bar 5.67m³/min), while VSD can reach the maximum at full loading.

In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.

Air End

Main Machine is a high-efficiency host that pays tribute to tradition. Featuring six bearings, Morse taper connection, stable pressure and quietness, small floor area, large size and an integral body.

Air End

Motor

IE4 Permanent Magnet Frequency Conversion Motors are highly efficient and energy-saving motors, thus reducing electricity costs.

Motor

Fan

The exciting new enlarged rotor fan design provides fast heat dissipation, low noise and a slim design to boost performance.

Fan

Inverter

The Standard Inverter features a heavy-duty chassis and comes complete with the necessary accessories to support your projects.

Inverter

Control panel

The traditional 860 operation panel has been redesigned with a sleek, new look. This allows it to be more mobile, safe and easy to operate.

Control panel

Cooler

The cooler emits a rapid flow of cool air, which effectively cools the surrounding area.

Cooler

Filter

The filter of the integrated air compressor boasts a distinctive hexagonal design, complete with side holes that make it easy to check the oil level. Additionally, it features a water cooler that is mounted on a multi-plate screw-type bearing, which is made of copper for optimal heat dissipation.

Filter

Intake Valve

The intake valve can makes controlling the air intake effect more convenient. With improved cooling and airflow efficiency, it is ideal for large ventilation systems and provides excellent cooling performance.

Intake Valve
