Rated Pressure: 0.8 – 1.3 MPa, 8 – 13 Bar
Air Flow @ Outlet: 300 – 980 L/min
Power: 3.7-7.5 kW, 5 – 10 hp
● High temperature 180℃stainless steel permanent magnet, effectively guarantee that the permanent magnet motor does not demagnetize.
● Equip a safety control system, reliable and intelligent control system that can automatically control the opening and closure of the door. It can guarantee the safe and reliable operation of the machine.
| Model No. / Drive Types |
Power (kW/HP) |
Rated pressure (bar) |
Air Flow @ Outlet (L/min) |
Dimensions (mm) |
Weight (kg) |
Air Outlet Pipe Diameter |
| SLYT-3.7S | 3.7 / 5 |
8 | 400 | 800*540*755 | 86 | G1/2 |
| 10 | 350 | |||||
| 13 | 300 | |||||
| SLYT-4.5S | 4.5 / 6 |
8 | 500 | 800*540*755 | 86 | G1/2 |
| 10 | 420 | |||||
| 13 | 360 | |||||
| SLYT-5.5S | 5.5 / 7 |
8 | 630 | 800*540*755 | 86 | G1/2 |
| 10 | 550 | |||||
| 13 | 420 | |||||
| SLYT-7.5S | 7.5 / 10 |
8 | 980 | 800*560*860 | 86 | G1/2 |
| 10 | 900 | |||||
| 13 | 800 |
Note:
Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.
In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.

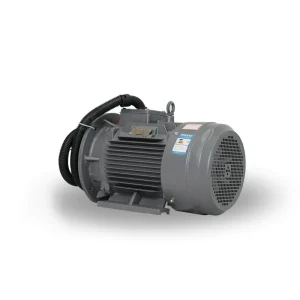

IE4 Permanent Magnet Frequency Conversion Motors are highly efficient and energy-saving motors, thus reducing electricity costs.
Single screw air compressor smart intake valve is designed to provide a more effective control of air intake. This intake valve can be easily adjusted to alter the rate and pressure of the airflow through it, which allows for improved performance and fuel efficiency.
Fans are a great way to increase air flow and keep your system running cool. They provide increased cooling with low noise levels, making them an ideal choice for cooling sensitive systems.
An external air filter is a type of filter that can be attached to the air intake of a vehicle or system. It is designed to capture and remove dust, dirt, allergens, pollutants, and other unwanted particles from the incoming air stream with the goal of improving performance or preventing damage.
The control panel of a Programmable Logic Controller (PLC) is designed for easy operation. With intuitive menus and user-friendly buttons, the control panel allows users to easily program and monitor any automated system.
The control panel of a Programmable Logic Controller (PLC) is designed for easy operation. With intuitive menus and user-friendly buttons, the control panel allows users to easily program and monitor any automated system.
Heavy-duty standard inverters are renowned for their reliable performance. They are used in a variety of applications including motor speed control, power factor correction and energy efficiency optimization. Inverters convert direct current (DC) electricity into alternating current (AC), making them an essential component in any electrical system.
