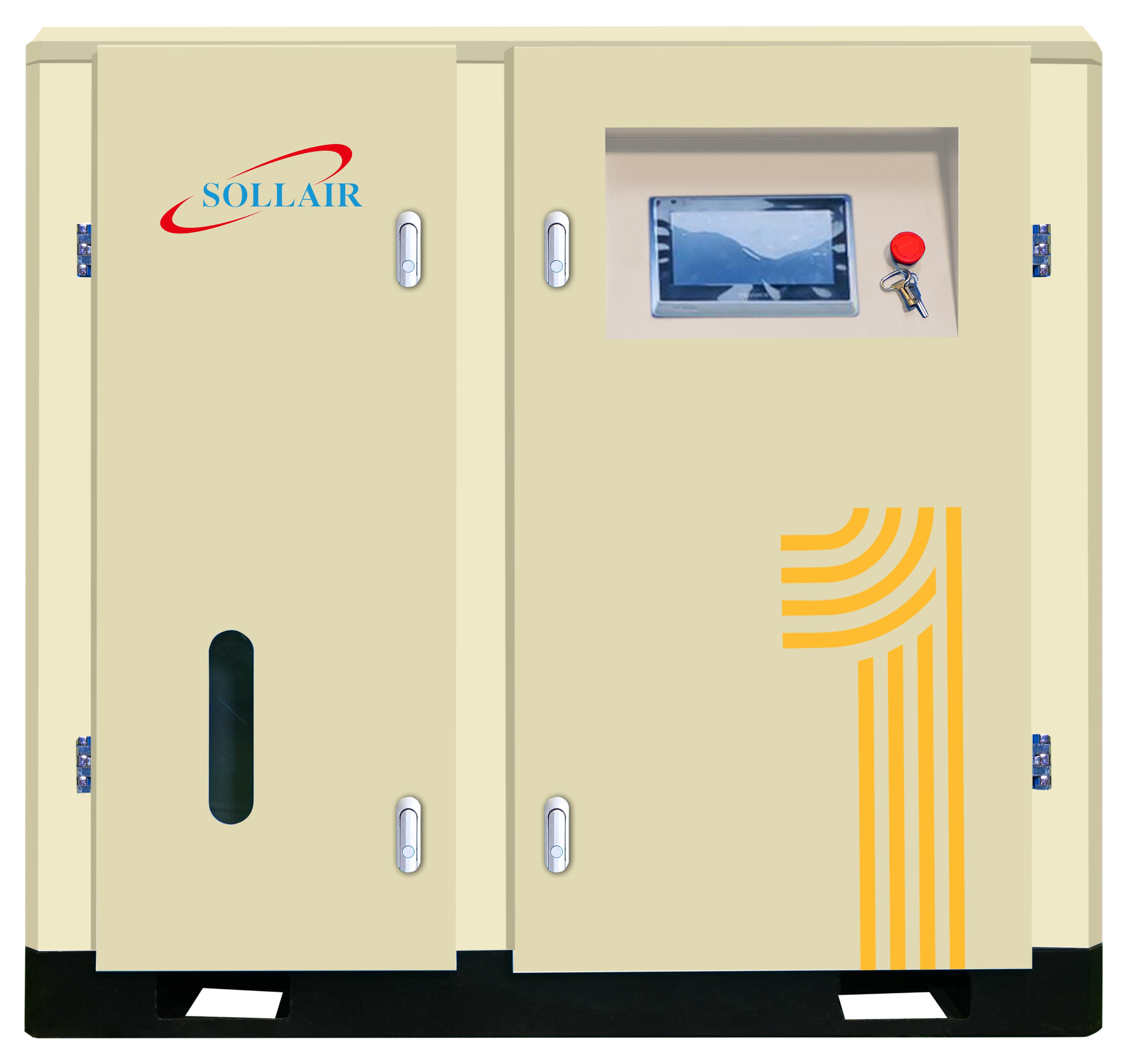

T-Series Screw Compressors

Where the air is always on

T-Series Screw Compressors

Rated Pressure: 0.8-1.3 MPa, 8-13 Bar
Air Flow @ Outlet: 0.8-42.5 m³/min
Power: 7.5- 335 kW, 10-335 hp

Description
Parameters

Sollair Permanent Variable Speed Rotary Screw Type Air Compressor boasts the following features:

● High-efficiency permanent magnet motors save up to 6-7% energy compared to traditional three-phase asynchronous motors. They also use a new split-shaft structure that is compact and stable, with high energy efficiency.

● Intelligent frequency conversion technology can save more than 30% energy compared to regular industrial frequency air compressors.

● The permanent variable speed rotary screw air compressor also come with an industrial management function to help streamline operations.

Model No. / Drive Types	Power (kW/HP)	Rated pressure (bar)	Air Flow @ Outlet(m³/min)	Dimensions (mm)	Weight (kg)	Air Outlet Pipe Diameter
SLT-7.5V SLT-7.5F	7.5 / 10	8	1.1	940650830	165	DN15
		10	1.0
		13	0.8
SLT-11V SLT-11F	11 / 15	8	1.6	11807501000	310	DN20
		10	1.4
		13	1.2
SLT-15V SLT-15F	15 / 20	8	2.4	11807501000	310	DN20
		10	2.1
		13	1.7
SLT-18V SLT-18F	18 / 25	8	3.0	13808501160	400	DN25
		10	2.7
		13	2.3
SLT-22V SLT-22F	22 / 30	8	3.6	13808501160	430	DN25
		10	3.2
		13	2.6
SLT-30V SLT-30F	30 / 40	8	5.0	13808501160	480	DN25
		10	4.3
		13	3.7
SLT-37V SLT-37F	37 / 50	8	6.1	150010001330	620	DN40
		10	5.4
		13	4.5
SLT-45V SLT-45F	45 / 60	8	7.6	150010001330	720	DN40
		10	6.4
		13	5.5
SLT-55V SLT-55F	55 / 75	8	9.4	180012501670	1480	DN50
		10	8.6
		13	7.4
SLT-75V SLT-75F	75 / 100	8	13.1	180012501670	1680	DN50
		10	11.8
		13	9.8
SLT-90V SLT-90F	90 / 120	8	16.8	180012501670	1880	DN50
		10	14.6
		13	11.6
SLT-110V SLT-110F	110 / 150	8	20.0	256016501900	2400	DN80
		10	17.8
		13	14.5
SLT-132V SLT-132F	132 / 175	8	23.2	256016501900	2700	DN100
		10	20.7
		13	16.9
SLT-160V SLT-160F	160 / 215	8	26.6	256016501900	2800	DN100
		10	22.6
		13	19.5
SLT-185V SLT-185F	185 / 250	8	30.4	360021002280	3100	DN100
		10	26.0.
		13	22.8
SLT-200V SLT-200F	200 / 270	8	32.0	360021002280	3100	DN100
		10	30.2
		13	26.3
SLT-220V SLT-220F	220 / 300	8	38.2	360021002280	3600	DN100
		10	33.2
		13	30.5
SLT-250V SLT-250F	250 / 335	8	42.5	360021002280	3800	DN100
		10	39.7
		13	35.8

Note:

Model number remarks: “F” as fixed speed, “V” as VSD. Due to the potentially different rotation speeds of motors, the air flow rates of fixed speed represent the minimum in the range (i.e 30kW 8 bar 5.67m³/min), while VSD can reach the maximum at full loading.
Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.

In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.

Intelligent Control System

● Provides a user-friendly interface that displays real-time operating data, including status updates and fault alerts.

● Offer online monitoring of pressure, power, and temperature fluctuations.

● The system has the capability to monitor faults in real-time and record alarm logs, as well as schedule automatic power on/off functions.

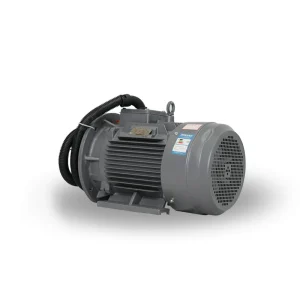

High-efficiency energy-saving permanent magnet motor

● Utilize the high-efficiency and energy-saving permanent magnet motor with protection level IP55.

● Its bearings are heavy-duty SKF bearings from Sweden, and its efficiency is 5%-10% higher than similar products.

● Run smoothly at high speeds with low noise and vibration due to its high balance precision.

● Have an insulation class of F

High-efficiency energy-saving permanent magnet motor

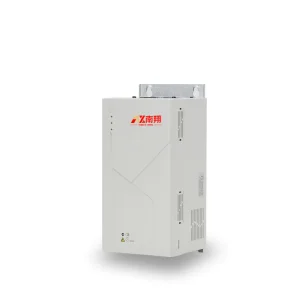

Intelligent double frequency conversion control system

The System of permanent variable speed rotary screw air compressor features the use of high-performance vector frequency converters from INOVANCE. It also boasts a user-friendly interface that allows for easy switching between Chinese and English languages. Additionally, it can be equipped with an optional Internet of Things cloud intelligence system for even greater functionality.

Efficient Cooler

The cooler has several features that make it a convenient and efficient choice. Firstly, it is easy to clean and remove dust. Secondly, it uses a high-efficiency heat exchanger with a large surface area, resulting in a 30% surplus of heat exchange and excellent cooling performance. Lastly, it can operate normally in environments with temperatures up to 45 degrees Celsius.

High efficiency oil and gas separator element

The oil and gas separator boasts a lifespan of at least 8000 hours and is made of microfiber glass material. Its folding process ensures optimal performance, with air containing less than 3 parts per million of oil and oil mist particles measuring 0.1 micrometers or less.

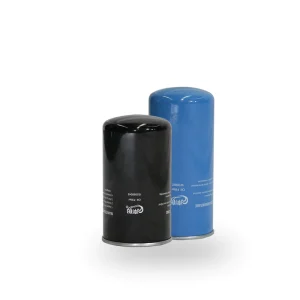

Oil Filter

This filter boasts a lifespan of up to 4000 hours, with a filtering precision of 10-15 microns or less. It also has a filtering efficiency of 99.5% or higher.

Air Filter

This intake air filter boasts a lifespan of up to 4000 hours. Its air filter is made of fiberglass material, with a filtration accuracy of ≥5μm and an efficiency of 99.8%. The filter also has a large filtration area, high precision, and a long lifespan.

Centrifugal Fan

The Centrifugal Fan boasts space-saving design, efficient cooling, and quiet operation. Its smooth performance and easy maintenance make it a reliable choice. Additionally, it features variable frequency control for added convenience.

Air End

The air end of permanent variable speed rotary screw air compressor boasts several features that make it an efficient and reliable choice.

● Utilize a HANBELL dual-screw main engine with a large rotor and low-speed design, resulting in high efficiency, low noise, and minimal vibration.

● The machine also features a new 5:6 non-symmetrical rotor helix design, which increases displacement by approximately 5% compared to standard models.

● Use original SKF bearings imported from Sweden and is designed with six sets of bearings, resulting in lower bearing stress and longer lifespan.
