Vacuum Pumps

Where the air is always on

Contact Us

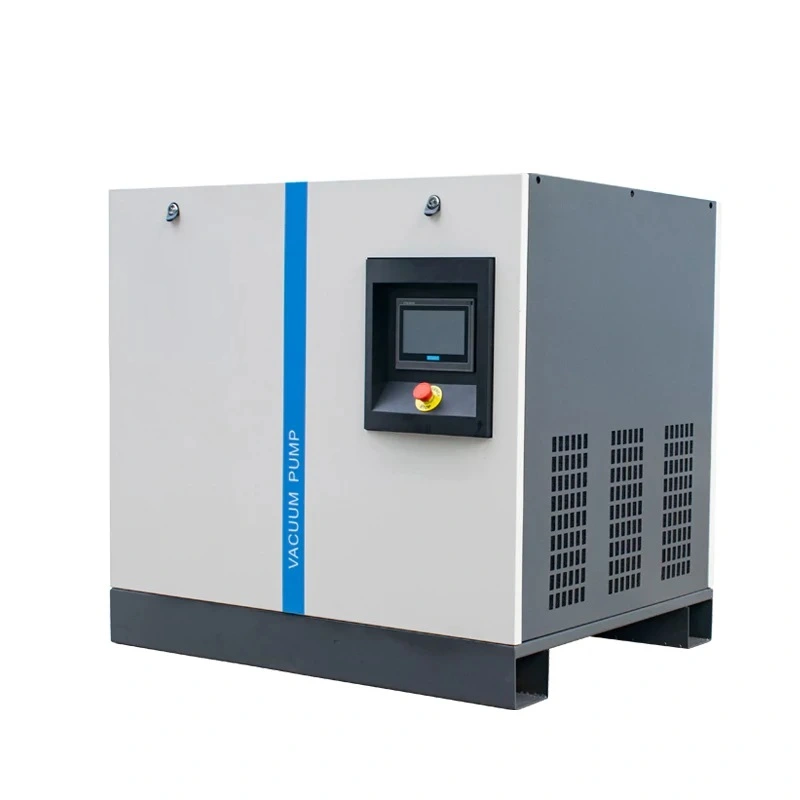

Vacuum Pumps

Extreme Pressure: 200 mbar
Pumping Speed: 750-7500m³/h
Motor Power: 11-110kW

●Fast – shorten the evacuation time.
●Reliable – Stable operation even under harsh industrial application conditions.
●Intelligent – built in control system has strong communication ability and automatic control ability.
●Economical – low running costs.
●Environmental protection – low carbon emissions: no need for water, no oil, low electricity consumption, no pollution from waste oil emissions.

Permanent magnet variable frequency oil screw vacuum pump

Model FAD (m³/hr) Working pressure mbar(a) oil volume (L) Noise [dB(A)] operating environmental temperature (C°) Dimension (L*W*H) (mm) inlet port Motor Power(kW) Motor Power (hp)
SLV-160VSD+ 160 0.35 8 50-60 0-46 1000*680*760 G2 2.2 3
SLV-300VSD+ 300 0.35 8 50-60 0-46 1000*680*760 G2 4 5.5
SLV-380VSD+ 380 0.35 8 50-60 0-46 1000*680*760 G2 5.5 7.5
SLV-450VSD+ 450 0.35 12 51-65 0-46 1120*900*1060 DN80 5.5 7.5
SLV-580VSD+ 580 0.35 12 51-65 0-46 1120*900*1060 DN80 7.5 10
SLV-730VSD+ 730 0.35 16 51-73 0-46 1360*1000*1130 DN80 11 15
SLV-900VSD+ 900 0.35 16 51-73 0-46 1360*1000*1130 DN80 15 20
SLV-1300VSD+ 1300 0.35 40 65-79 0-46 1800*1590*1470 DN150 22 30
SLV-1800VSD+ 1800 0.35 40 65-79 0-46 1800*1590*1470 DN150 30 40
SLV-2200VSD+ 2200 0.35 40 65-79 0-46 1800*1590*1470 DN150 37 50
SLV-3000VSD+ 3200 1 85 65-79 0-46 2200*1610*1700 DN150 45 60
SLV-3800VSD+ 3800 1 85 65-90 0-46 2200*1610*1700 DN150 55 75
SLV-4600VSD+ 4600 1 85 65-90 0-46 2980*2000*2000 DN200 75 100
SLV-5400VSD+ 5400 1 90 65-90 0-46 2980*2000*2000 DN200 90 120
SLV-6500VSD+ 6500 1 105 65-90 0-46 2980*2000*2000 DN200 110 150

Frequency conversion oil-free screw vacuum pump

Model FAD (m³/hr) Working pressure [mbar(a)] Noise [dB(A)] inlet port Dimension (L*W*H) (mm) Motor Power (kw)
SLV-11VSP 750 200 60-65 DN125 1360*1000*1134 11
SLV-15VSP 900 200 60-65 DN125 1360*1000*1134 15
SLV-22VSP 1200 200 65-70 DN125 1360*1000*1134 22
SLV-22VSP+ 1500 200 75-80 DN150 2160*1300*1560 22
SLV-30VSP 1880 200 75-80 DN150 2160*1300*1560 30
SLV-37VSP 1980 200 75-80 DN150 2160*1300*1560 37
SLV-37VSP+ 2550 200 80-83 DN200 2160*1300*1560 37
SLV-45VSP 3050 200 80-83 DN200 2160*1300*1560 45
SLV-55VSP 3500 200 80-85 DN200 2160*1300*1560 55
SLV-55VSP+ 4000 200 80-86 DN300 2610*1726*1910 55
SLV-75VSP 5100 200 80-87 DN300 2610*1726*1910 75
SLV-90VSP 6000 200 85-90 DN300 2610*1726*1910 90
SLV-110VSP 7500 200 85-90 DN300 2610*1726*1910 110

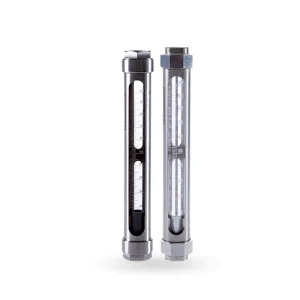

Glass rotor flowmeter

Resistance to thermal shock, pressure and oxidation is the result of employing borosilicate glass tube bodies that can withstand pressures up to 13.8 bar (200 psi). Plus, corrosion-resistant material options for scales, floats, fittings and valves accommodate a variety of applications, whether in the lab or in industrial processes.

Glass rotor flowmeter

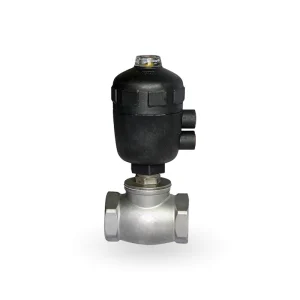

Pneumatic Angle seat valve

• High Cycle-Life
• Visual Indicator
• Robust Seat & Stem
• Actuator Head Rotates 360°
• Integrated Pneumatic Actuator
• Suitable for General Service Applications

Pneumatic Angle seat valve

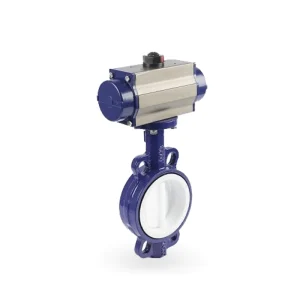

Double eccentric pneumatic butterfly valve

• High Cycle-Life
• Visual Indicator
• Robust Seat & Stem
• Actuator Head Rotates 360°
• Integrated Pneumatic Actuator
• Suitable for General Service Applications

Double eccentric pneumatic butterfly valve

The piston of pneumatic valve

The piston of pneumatic valve with integrated positioner for control applications with neutral to highly aggressive media. The straight design enables a highly efficient and very simple insulation of the valve body as well as the welded-on pipeline.

The piston of pneumatic valve

Inlet control valve

The intelligent control valve is mounted on the vacuum pump, to adjust the degree of opening automatically, to ensure that the main host has a minimum vacuum degree, to ensure that the lubricating oil circulation. The suction loss is lower and helps improve overall efficiency of the vacuum pump. If a sudden power failure or shutdown occurs, air intake will close automatically to prevent oily discharge.

Inlet control valve
