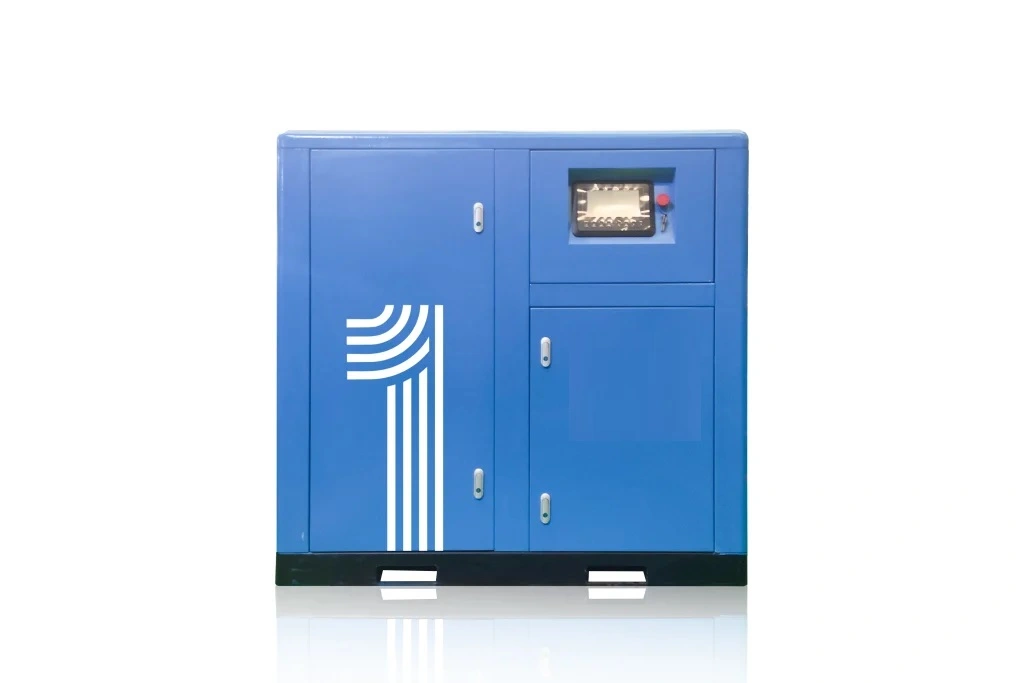

VW-Series Water Lubricated Screw Compressors

Where the air is always on

Contact Us

VW-Series Water Lubricated Screw Compressors

Rated Pressure: 0.8 – 1.3 MPa, 8 – 13 Bar
Air Flow @ Outlet: 0.81 – 36.75 m³/min
Power: 7.5 – 200 kW, 10 – 270 hp

Sollair water-lubricated oil-free air compressor uses water as a lubricant solves the problem of potential pollution caused by lubricating oil. Compared to other oil-free compressors, it has the advantages as follow:

● 100% oil-free clean air;

● The durability of the components is guaranteed by the use of materials that are resistant to rust and corrosion.

● High discharge pressure (single-stage compression pressure up to 1.7 MPa);

● Low exhaust temperature and high thermal efficiency, stable and reliable performance;
● Optimal isothermal compression;
● Oil-free stainless steel screw rotor;

● Offer remarkable energy savings while being environmentally friendly and free of pollution；

● Specially designed for food processing, medical, pharmacy, coating and chemical industry, etc.

Model
No. /
Drive Types		 Power
(kW/HP)		 Rated  Pressure
(bar)		 Air Flow
@ Outlet
(m³/min)		 Lubricating
Water Volume
(L)		 Dimensions
(mm)		 Weight
(kg)		 Air Outlet Pipe
Diameter
SLVW-7.5 7.5
/ 10		 8 0.35~1.17 10 800*800*1200 320 3/4″
10 0.3~1.05
SLVW-11 11/15 8 0.54~1.72 26 1200*755*1130 400 3/4″
10 0.45~1.42
SLVW-15 15
/ 20		 8 0.75~2.43 26 1200*755*1130 440 3/4″
10 0.65~2.17
SLVW-18.5 18.5/25 8 0.9~3.13 30 1400*900*1285 640 1″
10 0.9~2 .82
SLVW-22 22
/ 30		 8 1.1~3.7 30 1400*900*1285 640 1″
10 0.97~3.21
SLVW-30 30/40 8 1.55~5.2 40 1400*950*1390 760 1 1/4″
10 1.255~4.43
SLVW-37 37
/ 50		 8 1.91~6.50 40 1580*1000*1485 880 1 1/4″
10 1.60~5.33
SLVW-45 45/60 8 2.50~8.30 90 1800*1300*1680 1050 2″
10 1.91~6.30
SLVW-55 55
/ 75		 8 3.0~10.3 100 2050*1300*1690 1100 2″
10 2.60~8.55
SLVW-75 75
/ 100		 8 3.96~13.00 100 2180*1350*1705 1230 2″
10 3.40~11.50
SLVW-90 90/120 8 5.0~16.60 120 2550*1500*1825 2080 2 1/2″
10 4.30~14.66
SLVW-110 110
/ 150		 8 6.0~20.2 120 2550*1500*1825 2230 2
1/2″
10 5.0~16.66
SLVW-132 132
/ 175		 8 6.75~23 .52 120 2800*2128*1860 2360 2
1/2″
10 6.0~19.97
SLVW-160 160
/ 215		 8 8.5~28.11 160 2700*1800*1970 3900 D80
10 7.6~25.45
SLVW-185 185
/ 250		 8 10~31.32 160 2700*1800*1970 4050 D80
10 8.72~29.00
SLVW-200 200
/ 270		 8 11.2~36.75 200 2700*1800*1970 4200 D100
10 9.68~31.8
SLVW-220 220/300 8 12.2~39.6 200 2700*1800*1970 4400 D100
10 11.2~35.7
SLVW-250 250/340 8 13.5~45.0 200 2700*1800*1970 4800 D100
10 12.3~40.0

Note:

Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.

In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.

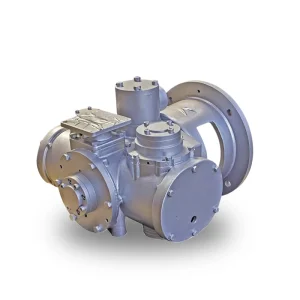

Air End

The patented design of the fifth-generation air end in the water-lubricated oil-free rotary screw compressor utilizes a stainless alloy construction. This innovation marks a technological shift from copper to stainless steel. The significant rotors operate at speeds below 3000 r/min.

Air End

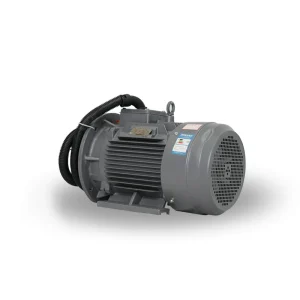

High- Protection Level Motor

The main motor is an IP55 high-efficiency energy-saving permanent magnet motor carefully selected according to the application of the air compressor. （other IP level available)

All meet the national energy efficiency standards, F-class insulation, B-class temperature rise, effectively prevent the entry of dust，SKF heavy-duty bearings ensure continuous trouble-free operation for a long time.

High- Protection Level Motor

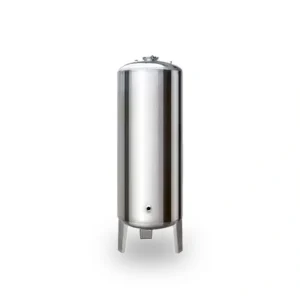

Water Filter

High quality stainless steel material, separate the compressed air and water efficiently.

Water Filter

Looking for the Best Compressed Air Solution for your industry?

Get free consultation Now
  • Share your requirements for expert evaluation (multilingual support).
  • Get customized solution, including IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
  • Production started after order confirmation (standard production time: 20-25 days).
  • Rigorous quality testing before shipping.
  • Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
